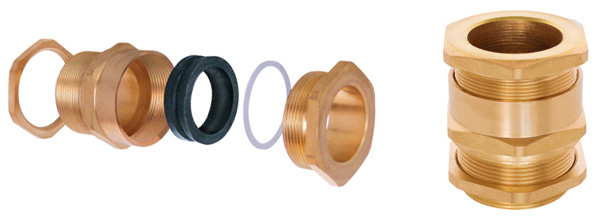

BRASS A2 CABLE GLANDS

Brass outdoor and indoor Cable Gland are highly suitable for all types of un-armoured cables, plastic or rubber sheathed cables. This Brass A2 Cable Glands provides a seal on outer sheath. Recommended to use PVC shroud for additional ingress protection.

Technical Data :

Type : A1/A2
Design Specification : BS 6121 : Part I : 1989
Gland Material : Brass
Ingress protection : IP 66
Finish : Plain Brass or Nickel Plated
Seal Material : Thermoplastic Elastomer
Cable Type : Unarmoured
Sealing Technique : Displacement Type
Sealing Area : Outer Sheath

Brass A2 Cable Glands

Gland
Size

Cable Dimensions Accommodated

Gland Dimensions

E-Code

Overall Diameter

Dia. “A”

Dia. “B”

Metric Entry Thread “C”

Minimum Thread Length “D”

Across Flat “E” Max.

Min.

Max.

16

3.5

8.5

10.0

12.0

16

15

21.3

CCGCM16B

20 SS

3.5

8.5

10.0

15.4

20

15

23.6

CCGCM20SSB

20 S

8.0

11.5

11.9

15.4

20

15

23.6

CCGCM20SB

20 L

11.0

13.5

14.5

17.9

20

15

26.85

CCGCM20LB

25 S

13.0

16.5

16.5

20.3

25

15

30.5

CCGCM25SB

25 L

13.0

19.5

20.7

27.4

25

15

35.5

CCGCM25LB

32

19.0

25.5

26.9

31.7

32

15

41.3

CCGCM32LB

40 L

25.0

32. 0

32.5

37.1

40

15

47.0

CCGCM40LB

50 S

31.5

37.0

38.6

44.2

50

15

55.0

CCGCM50SB

50 L

36.5

43.0

44

48.9

50

15

59.95

CCGCM50LB

63 S

42.5

50.0

50.3

56.1

63

15

64.75

CCGCM63SB

63 L

49.5

55.0

56.4

60.2

63

15

69.85

CCGCM63LB

75 S

54.5

61.0

62.2

62.2

75

15

78.75

CCGCM75SB

75 L

60.5

67.0

68.3

73.1

75

15

84.6

CCGCM75LB

90

65.0

78.0

80.3

80.3

90

20

102.6

CCGCM90LB

100

75.0

88.0

90.0

91.6

100

25

119.1

CCGCM100LB

Dimensions in mm
